HDER-SE2

Electronic Overcurrent Relay

I want to make an inquire
Product details

■ Compact Design

■ Multiple Protection Functions
■ Wide Current Adjustment Range(10:1)
■ Ammeter Function
■ Trip Indication LED
■ High Accuracy
■ Manual Instantaneous Reset
■ Electrical Remote Reset
■ Test Function
■ Ambient Insensitive
■ Low Power Consumption
■ Fail-safe Operation(No Volt Release)


Protection:

Protective Item

Operating(Trip) Time

Over-current

 O-TIME

Phase Loss

O-TIME

Locked Rotor

  O-TIME


Specification:

Current Setting

Type

Range

05

0.5 ~ 6A

30

3.0 ~ 30A

60

5.0 ~ 60A

over 60A~

with External CT(Option)

Time Setting

Trip

O-TIME

0.2 ~ 15sec

Control Voltage

220

90 ~260VAC

440

320~ 480VAC

Output Relay

Mode

1-SPDT(1C)

Rating

3A / 250VAC Resistive

Status

Normally Energized

Time-Current Characteristic

Definite

Operating(Trip) Indication

2-LED

Mounting

35mm DIN-Rail / Panel


Installation dimension drawing:

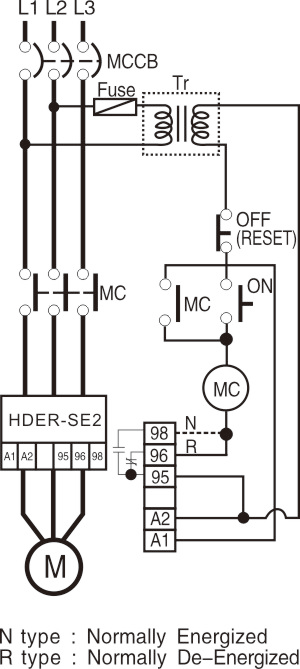

circuit diagram:
