I want to make an inquire■ MCU( Microprocessor Control Unit )Based
■ Convenient installation
■ Full mode function:easy to set
■ Three Integral Current Transformers
■ Full cover protection Function
■ Wide Current Range protection
■ Built-in digital ammeter
■ Total running time display
■ Bar-Graph monitoring on impending overload trip
■ Selectable time-current characteristics[Inverse/Inverse based on thermal Memory (Thermal Inverse) /Definite]
■ 4~20mA current loop communcations
■ Test Function
■ Operates in wide ambient temperature range
■ Selectable Fail-safe Operation/ No volt Release(FS:ON
Protection：
rotective Item | Trip Time |
Over-current | O-TIME |
Under-current | Preset Ut time |
Phase Reversal | 0.1~0.3 sec |
Phase Unbalance | within 5 sec |
Ground Fault | Preset Et time |
Locked Rotor | 0.5 sec after d-time |
Stall | 0.5 sec |
Output | 4~20ml |
Specification：
Current Setting Range | Over-Current(oc) | 0.5~6.3A | |
5~63A | |||
Over 63A with External CTs | |||
Under-Current(uc) | 0.5~60A | ||
Time Setting | Starting Delay Time(dt) | 0.2~60sec | |
Over-Current Trip Time(ot) | Definite Time | 0.2~30sec | |
Inverse Time | 0.2~60sec | ||
Under-Current Trip Time(ut) | 0.5~30sec, definite time characteristics, if "uc" mode selects OFF, then ut is automatically disabled OFF. | ||
Tolerance | Current | ±5% | |
Time | ±5% | ||
Control Power | 110±15%, 220VAC±15%, 380VAC±15%, 50/60Hz | ||
Output Relay | OL | 2-SPST | 3A/250VAC, Resistive |
Display | 7-Segment LED | 3phase current,Trip cause, Operating hou | |
Bar-Graph | Load factor for current setting(50~100%) | ||
Time-Current Characteristic | Definite / Inverse | ||
Mounting | 35mm DIN-Rail / Panel | ||
Installation dimension drawing：

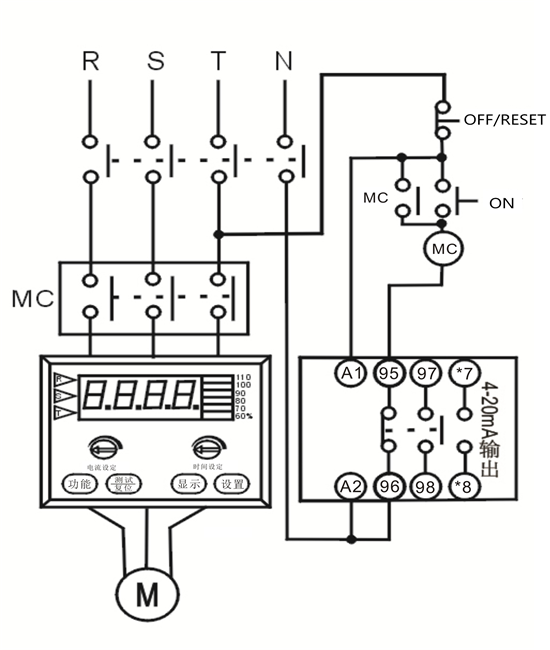

Circuit diagram：
