■ Fitted to HDER relays for Large Amp Motor Protection
■ 1.0 Measuring Class
Technical Parameters：
Model | HDER-2CT | |
Current Ratio | 100 | 100 : 5A |
150 | 150 : 5A | |
200 | 200 : 5A | |
300 | 300 : 5A | |
400 | 400 : 5A | |
Class | 1.0 | |
Power Rating | 5VA | |
Insulation Voltage | AC600V | |
Dielectric Strength | 2KV | |
Insulation | 10MΩ (DC500V Megger) | |
Mounting | Panel | |

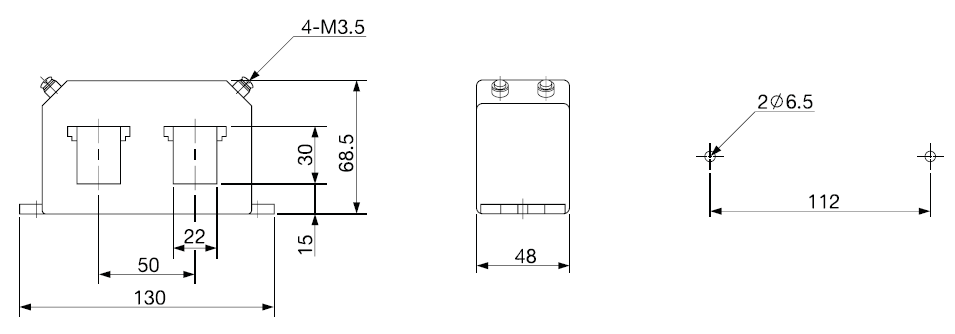

Installation dimension drawing：
