SAT8-S

time relay

I want to make an inquire

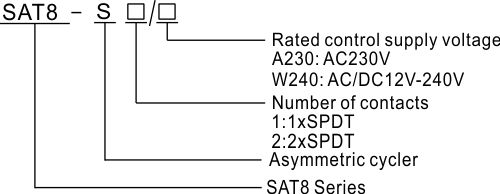

MODEL DESCRIPTION

APPLICATIONS

It is used for regular room ventilation, cyclic dehumidification, light control, circulating pumps, noon signs,etc.

FEATURE

2 time functions:

Cycler beginning with pulse

Cycler beginning with pause

Function choice is done by an external jumper of terminals S-A1.

Time scale 0.1 s - 100 days devided into 10 time ranges:

(0.1s-1s/1s-10s/0.1min-1min/1min-10min/0.1h-1h/1h-10hrs/0.1day-1day/1day- 10days/3days-30days/10days-100days).

Relay status is indicated by LED.

1-MODULE,DIN rail mounting.

TECHNICAL PARAMETERS

Electrical features     Function		SAT8-S1	SAT8-S2
		Asymmetric cycle r time relay
Supply terminals		A1-A2
Voltage range	W240	AC/ DC 12-240V( 50- 60Hz)
Burden		AC/0 .09-3VA/ DC 0 .05- 1 . 7W
Voltage range	A230	AC 230V( 50- 60Hz)
Power input		AC max . 6VA/ 1 . 3W	AC max . 6VA/ 1 . 9W
Supply voltage tolerance		- 15% ;+10%
Supply indication		green LED
Time ranges		0 . 1s  100days
Time setting		potention meter
Time deviation		10%- mechanical setting
Repeat accuracy		0 .2 %-set value stability
Temperature coefficient		0 .05%/℃ ,at =20℃ (0 .05%  F ,  at =68  F )
Output Current rating		1xSPDT 1x16A(AC1)	2xSPDT 2x16A(AC1)
Switching voltage		250VAC/24VDC
Min . breaking capacity DC		500mW
Output  indication		red LED
Mechanical life		1x10 7
Electrical life(AC1)		1x10 5
Reset time		max .200ms
Operating temperature		-20℃ to  +55℃  (-4  F to  131  F )
Storage temperature		- 35℃ to  +75℃  (-22  F to  158  F )
Mounting/ DIN rail		Din rail EN/ IEC 60715
Protection degree		IP40 for front panel/ IP20 terminals
Operating position		any
Overvoltage category		Ⅲ
Pollution degree		2
Max . cable size( mm2)		solid wire max . 1x2 . 5 or 2x1 .5/with sleeve max . 1x2 .5 (AWG 12)
Dimensions		90x18x64mm
Weight		1xSPDT:W240- 62g ,A230 -61g
		2xSPDT:W240- 82g ,A230 -82g
Standards		EN 61812- 1 , IEC60947 -5 - 1

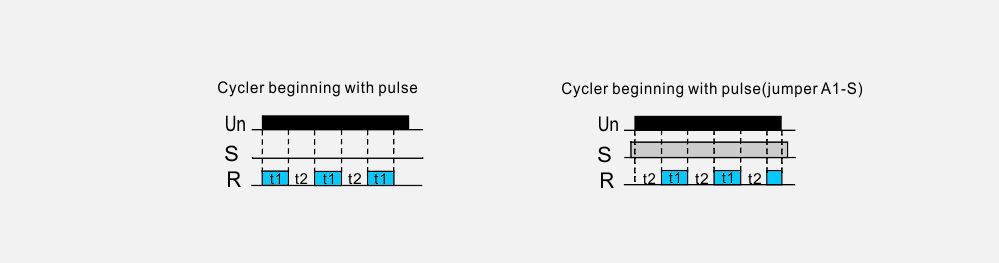

FUNCTIONS DIAGRAM

WIRING DIAGRAM

DIMENSIONS(MM)
