SAT8-AB

time relay

I want to make an inquire

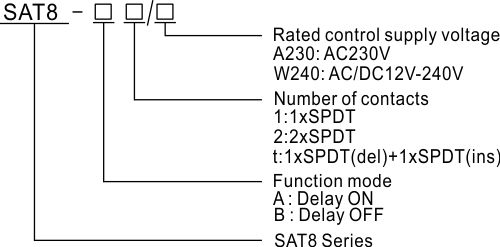

MODEL DESCRIPTION

APPLICATIONS

For gradual switching of heavy powers (e.g. el.heating), prevents current strokes in the main

FEATURE

2x Delay ON (2 time relays in one)

Time scale 0.1s-10 days divided into 10 time ranges:

 0.1s-1s/1s-10s/0.1min-1min/1min-10min/0.1h-1h/1h-10hrs/0.1day-1day/1day-10days/ON/OFF.

Times t1 and t2 are independently adjustable.

t1 and t2 are switched on after supply voltage connection.

Relay status is indicated by LED. 1-MODULE, DIN rail mounting.

TECHNICAL PARAMETERS

Electrical features          Function		SAT8 A1/B1	SAT8 A1/B1	SAT8 At/Bt
		A:delya ON; B:delay OFF
Supply terminals		A1-A2
Voltage range	W240	AC/ DC 12-240V( 50- 60Hz)
Burden		AC/0 .09-3VA/ DC 0 .05- 1 . 7W
Voltage range	A230	AC 230V( 50- 60Hz)
Power input		AC max . 6VA/ 1 . 3W	AC max . 6VA/ 1 . 9W
Supply voltage tolerance		- 15% ;+10%
Supply indication		green LED
Time ranges		0 . 1s- 10days , ON , OFF
Time setting		potention meter
Time deviation		10%- mechanical setting
Repeat accuracy		0 .2 %-set value stability
Temperature coefficient		0 .05%/℃ ,at =20℃ (0 .05%  F ,  at =68   F )
Output Current rating		1xSPDT 1x16A(AC1)	2xSPDT 2x16A(AC1)	1xSPDT(del) +1xSPDT( ins) 2x16A(AC1)
Switching voltage Min . breaking capacity DC		250VAC/24VDC 500mW
Output  indication		red LED
Mechanical life		1x10 7
Electrical life(AC1)		1x10 5
Reset time		max .200ms
Operating temperature		-20℃ to  +55℃  (-4   F to  131  F )
Storage temperature		- 35℃ to  +75℃  (-22   F to  158  F )
Mounting/ DIN rail		Din rail EN/ IEC 60715
Protection degree		IP40 for front panel/ IP20 terminals
Operating position		any
Overvoltage category		Ⅲ
Pollution degree		2
Max . cable size( mm2)		solid wire max . 1x2 . 5 or 2x1 .5/with sleeve max . 1x2 .5 (AWG 12)
Dimensions		90x18x64mm
Weight		1xSPDT:W240- 60g ,A230 -59g
		2xSPDT:W240- 81g ,A230 -79g
Standards		EN 61812- 1 , IEC60947 -5 - 1

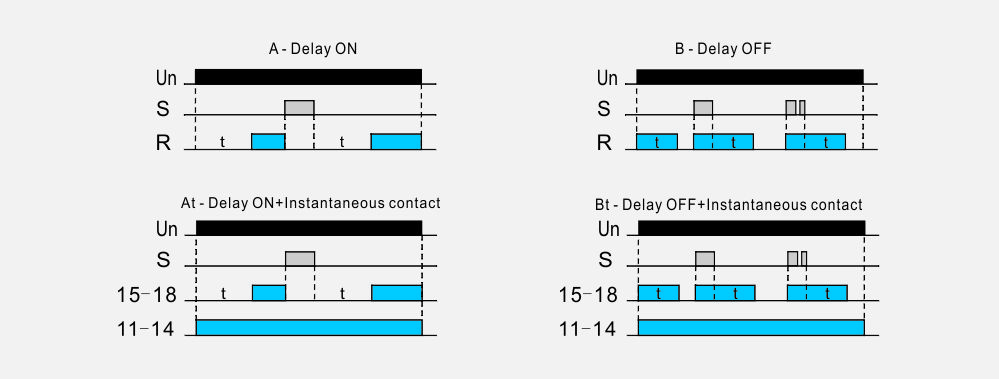

FUNCTIONS DIAGRAM
