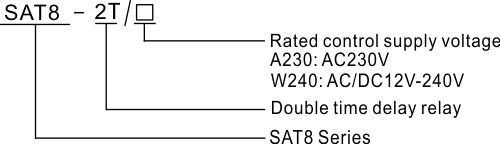

MODEL DESCRIPTION
APPLICATIONS
For gradual switching of heavy powers (e.g. el.heating), prevents current strokes in the main
FEATURE
2x Delay ON (2 time relays in one)
Time scale 0.1s-10 days divided into 10 time ranges:
0.1s-1s/1s-10s/0.1min-1min/1min-10min/0.1h-1h/1h-10hrs/0.1day-1day/1day-10days/ON/OFF.
Times t1 and t2 are independently adjustable.
t1 and t2 are switched on after supply voltage connection.
Relay status is indicated by LED. 1-MODULE, DIN rail mounting.
TECHNICAL PARAMETERS
| Electrical features | SAT8-2T | |
| Function | 2x Delay ON | |
| Supply terminals | A1-A2 | |
| Voltage range | W240 | AC/ DC 12-240V( 50- 60Hz) |
| Burden | AC/0 .09-3VA/ DC 0 .05- 1 . 7W | |
| Voltage range | A230 | AC 230V( 50- 60Hz) |
| Power input | AC max . 6VA/ 1 . 9W | |
| Supply voltage tolerance | - 15% ;+10% | |
| Supply indication | green LED | |
| Time ranges | 0 . 1s - 10days , ON , OFF | |
| Time setting | potention meter | |
| Time deviation | 10%- mechanical setting | |
| Repeat accuracy | 0 .2 %-set value stability | |
| Temperature coefficient | 0 .05%/℃ ,at =20℃ (0 .05% F , at =68 F ) | |
| Output Current rating | 2xSPDT 16A/AC1 | |
| Switching voltage Min . breaking capacity DC | 250VAC/24VDC 500mW | |
| Output indication | red LED | |
| Mechanical life | 1x10 7 | |
| Electrical life(AC1) | 1x10 5 | |
| Reset time | max .200ms | |
| Operating temperature | -20℃ to +55℃ (-4 F to 131 F ) | |
| Storage temperature | - 35℃ to +75℃ (-22 F to 158 F ) | |
| Mounting/ DIN rail | Din rail EN/ IEC 60715 | |
| Protection degree | IP40 for front panel/ IP20 terminals | |
| Operating position | any | |
| Overvoltage category | Ⅲ | |
| Pollution degree | 2 | |
| Max . cable size( mm2) | solid wire max . 1x2 . 5 or 2x1 .5/with sleeve max . 1x2 .5 (AWG 12) | |
| Dimensions | 90x18x64mm | |
| Weight | W240- 82g , A230 -82g | |
| Standards | EN 61812- 1 , IEC60947 -5 - 1 | |
WIRING DIAGRAM
FUNCTIONS DIAGRAM
DIMENSIONS(MM)
